Canvas settings for a sketch

canvas bundles the settings draw() applies to a sketch as a whole, before drawing any of its shapes: a background fill and an optional fixed xlim/ylim frame. It plays the same role for sketch that style() plays for a single drawable – a small, reusable settings object, validated independently and stored as a property (sketch's own canvas) rather than a flat list of arguments.

Usage

canvas(background = fill_none(), xlim = NULL, ylim = NULL, clip = FALSE)

Arguments

background

Background fill, drawn beneath every shape in the sketch. Either a plain colour string, or the output of a fill_*() helper – see style()'s fill argument for the full family (a bare colour string/GridPattern is coerced into a fill object automatically). Default fill_none() (no background drawn; the page's own background shows through, matching draw()'s behavior before canvas existed).

xlim, ylim

Fixed axis limits, each a numeric vector of length 2, or NULL (the default) to compute them from the sketch's own shapes at draw time, as draw() already did before canvas existed. An explicit xlim/ylim passed to draw() itself always takes precedence over these.

clip

Whether to clip content to xlim/ylim. Must be a single logical. Default FALSE – see Details.

Details

xlim/ylim only fix the coordinate scale draw() maps onto the page – they do not, by themselves, clip content that falls outside that range; a shape wider than its sketch's canvas still renders in full, spilling past the frame, exactly as passing xlim/ylim to draw() directly already behaves. This is a deliberate default: shapes built from a noise_field/noise_bridge (e.g. shape_blob(), shape_twist()) can have somewhat unpredictable extents, and silently cropping part of one away is a worse failure mode than a visibly overflowing shape, which is an obvious cue to adjust the sketch's parameters. Set clip = TRUE to opt into hard clipping at xlim/ylim instead – most useful once background is also set to something other than fill_none(), since an opaque background otherwise has visible content bleeding past its own edge onto the bare page. clip has no visible effect when xlim/ylim are both left NULL, since draw() then computes them from the sketch's own shapes, which by construction never exceed that range.

See also

Other core structure: draw(), drawable(), group(), sketch(), style(), xy()

Examples

canvas()
#> <sketchpad::canvas>
#>  @ background: <sketchpad::fill>
#>  .. @ value  : chr NA
#>  .. @ resolve: NULL
#>  @ xlim      : NULL
#>  @ ylim      : NULL
#>  @ clip      : logi FALSE
canvas(background = "grey90")
#> <sketchpad::canvas>
#>  @ background: <sketchpad::fill>
#>  .. @ value  : chr "grey90"
#>  .. @ resolve: NULL
#>  @ xlim      : NULL
#>  @ ylim      : NULL
#>  @ clip      : logi FALSE

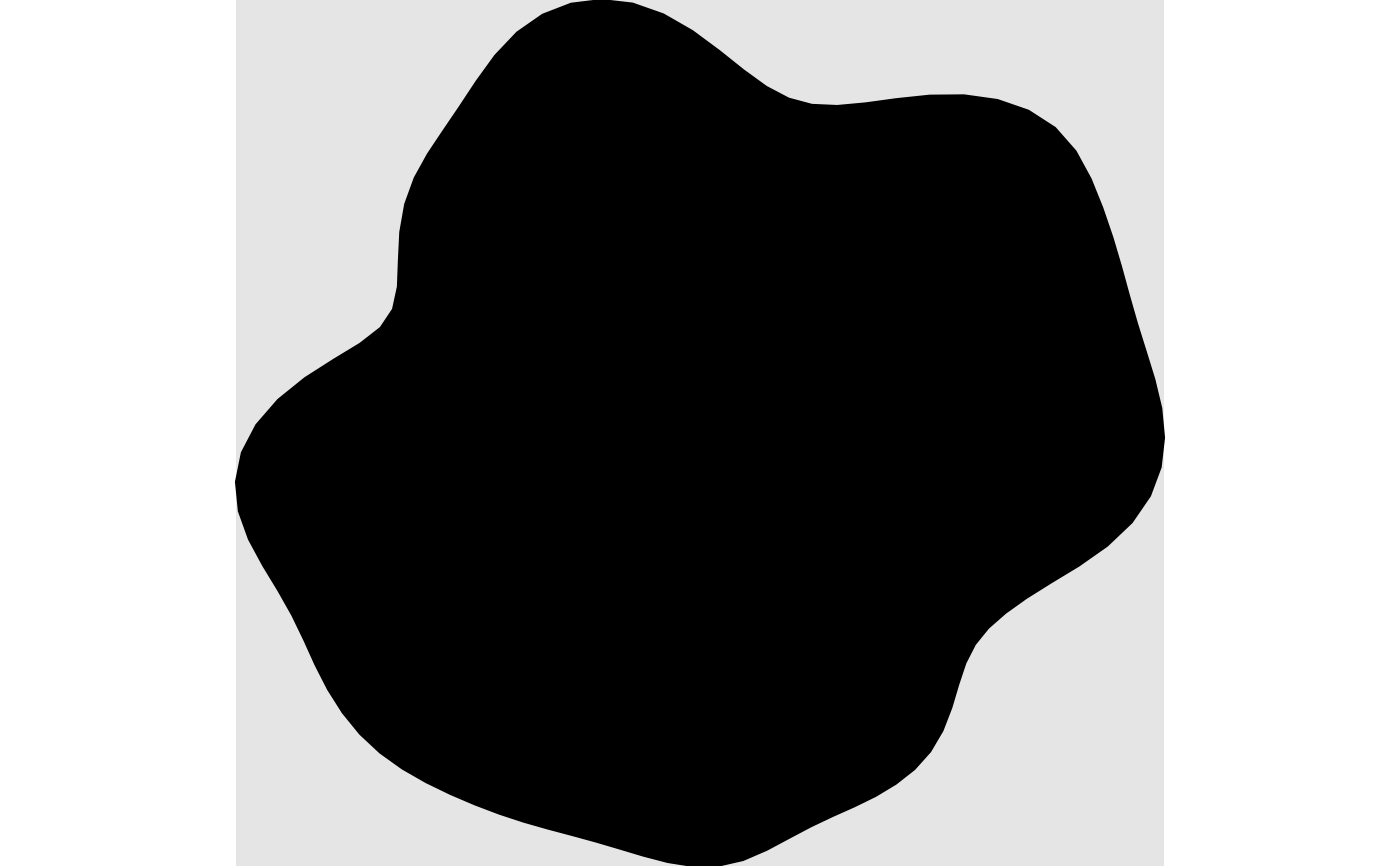

# a background is drawn beneath every shape in the sketch
draw(sketch(canvas = canvas(background = "grey90")) + shape_blob(radius = 1))


# xlim/ylim alone only fix the coordinate scale -- a shape wider than the
# frame still overflows it
overflowing <- sketch(canvas = canvas(
  background = "white", xlim = c(-1, 1), ylim = c(-1, 1)
)) + shape_circle(radius = 1.4)
draw(overflowing)


# clip = TRUE hard-clips content at xlim/ylim instead
overflowing@canvas@clip <- TRUE
draw(overflowing)
