A paper-grain/textured-ink rendering of a drawable's own outline

effect_grain takes an existing polygon-geometry drawable (object, e.g. shape_stroke(), shape_blob(), shape_ribbon()) and renders its own outline (object@points) not with a style()@fill via the ordinary draw()/geometry_grob() path, but by compositing a rasterised paper-grain texture and masking it to the outline's exact polygon shape via grid::as.mask().

Usage

effect_grain(
  object,
  grain = noise_field(frequency = 15, octaves = 2L, seed = 2L),
  resolution = 150L,
  color = "gray15",
  alpha = 1,
  background = NA_character_
)

Arguments

object: A polygon-geometry drawable (@geometry == "polygon") whose outline is textured – e.g. shape_stroke(), shape_blob(), shape_ribbon(). object@points is used directly; object@style plays no role (effect_grain() draws its own grain raster instead).
grain: A noise_field controlling the paper-grain texture, sampled directly at each raster pixel's own world position (not torus-periodic, unlike fill_noise()'s tiled field – see Details). Default noise_field(frequency = 15, octaves = 2L, seed = 2L) (finer/denser than noise_field()'s own default, for a paper-grain rather than cloudy look).
resolution: Raster resolution (pixels per edge of object's own bounding box). Must be a positive integer of at least 2L. Default 150L.
color: Grain colour. Default "gray15".
alpha: Maximum grain opacity, at the noise field's peak. Must be a number in (0, 1]. Default 1.
background: Colour revealed as grain fades out, or NA for true transparency (showing whatever is drawn behind). Default NA.

Value

An effect_grain object.

Details

This is the same masking technique fill_vignette() already uses for its own radial fade, but applied to object's own real (possibly concave, tapering-to-a-point) silhouette rather than a synthetic circle drawn purely to build the mask.

This is a different effect than filling object with fill_charcoal()/fill_noise() (already a good option for a shape's interior – see fill_charcoal()'s docs): those tile a periodic texture that repeats across the shape via grid::pattern(), sized relative to the target's own bounding box. effect_grain() instead samples its grain noise_field once, directly, across object's own world coordinates – a single non-repeating raster the size of the whole shape, with no tiling seam to manage, at the cost of needing its own draw() method rather than reusing geometry_grob()'s existing "polygon"/"path"/"points" branches (effect_grain is not a drawable subclass at all, since its rendering isn't expressible as a single points-based grob).

Grain is rendered as varying opacity of color, from fully transparent at the noise field's minimum to alpha at its maximum – exactly fill_noise()'s own opacity convention – optionally revealing a solid background colour underneath (as fill_vignette()'s own background argument does) rather than true transparency, which reads as a solid, mottled ink stroke instead of a sparse one.

Examples

t <- seq(0, 8, length.out = 150)
template <- shape_stroke(x = t, y = sin(t), width = 0.4)

# before: a plain filled stroke
draw(template)


# after: the same outline rendered as textured grain instead of a
# solid style() fill

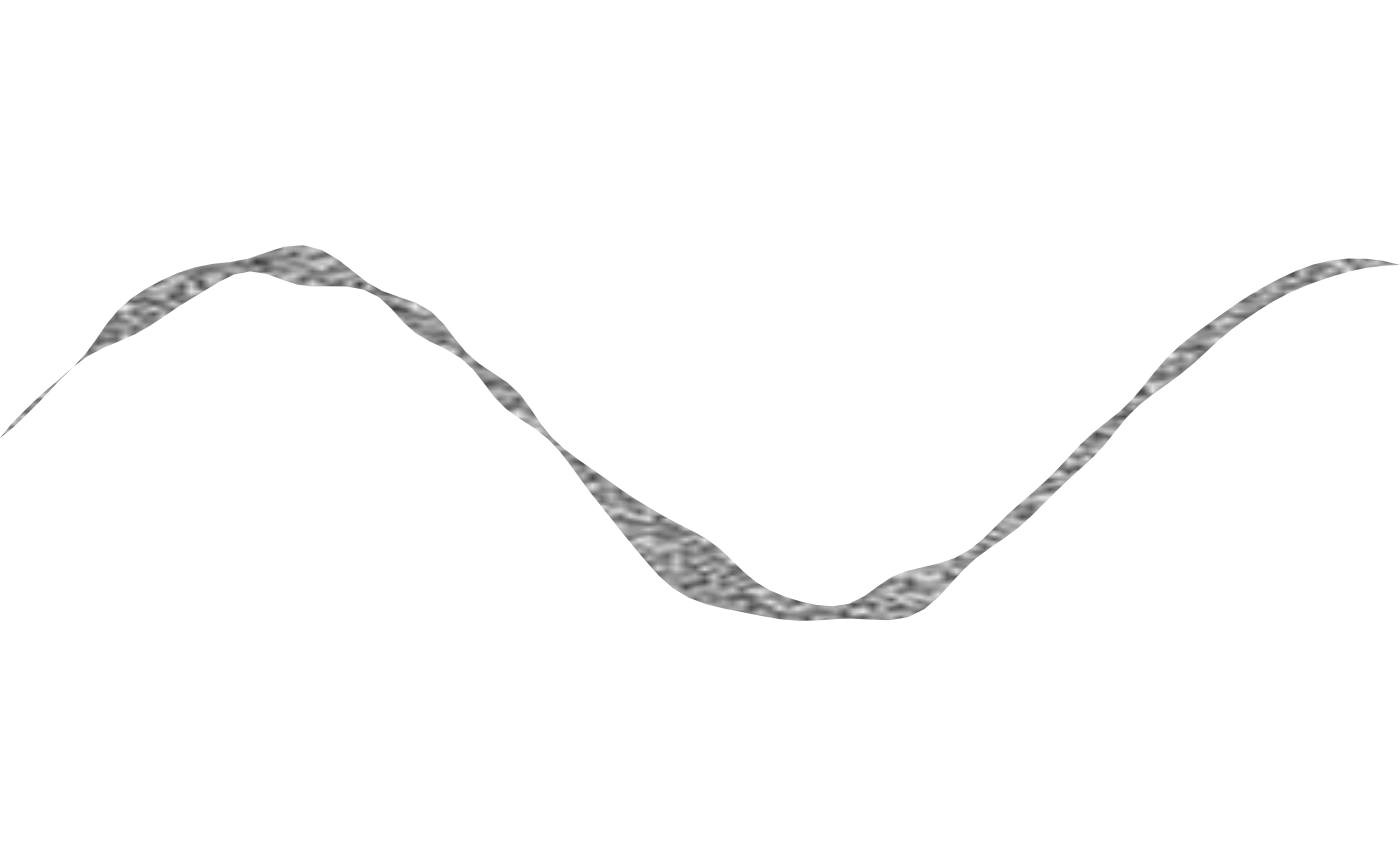

draw(effect_grain(template, color = "gray10", alpha = 0.9))


# a non-NA background reveals a solid colour underneath the grain,
# instead of true transparency

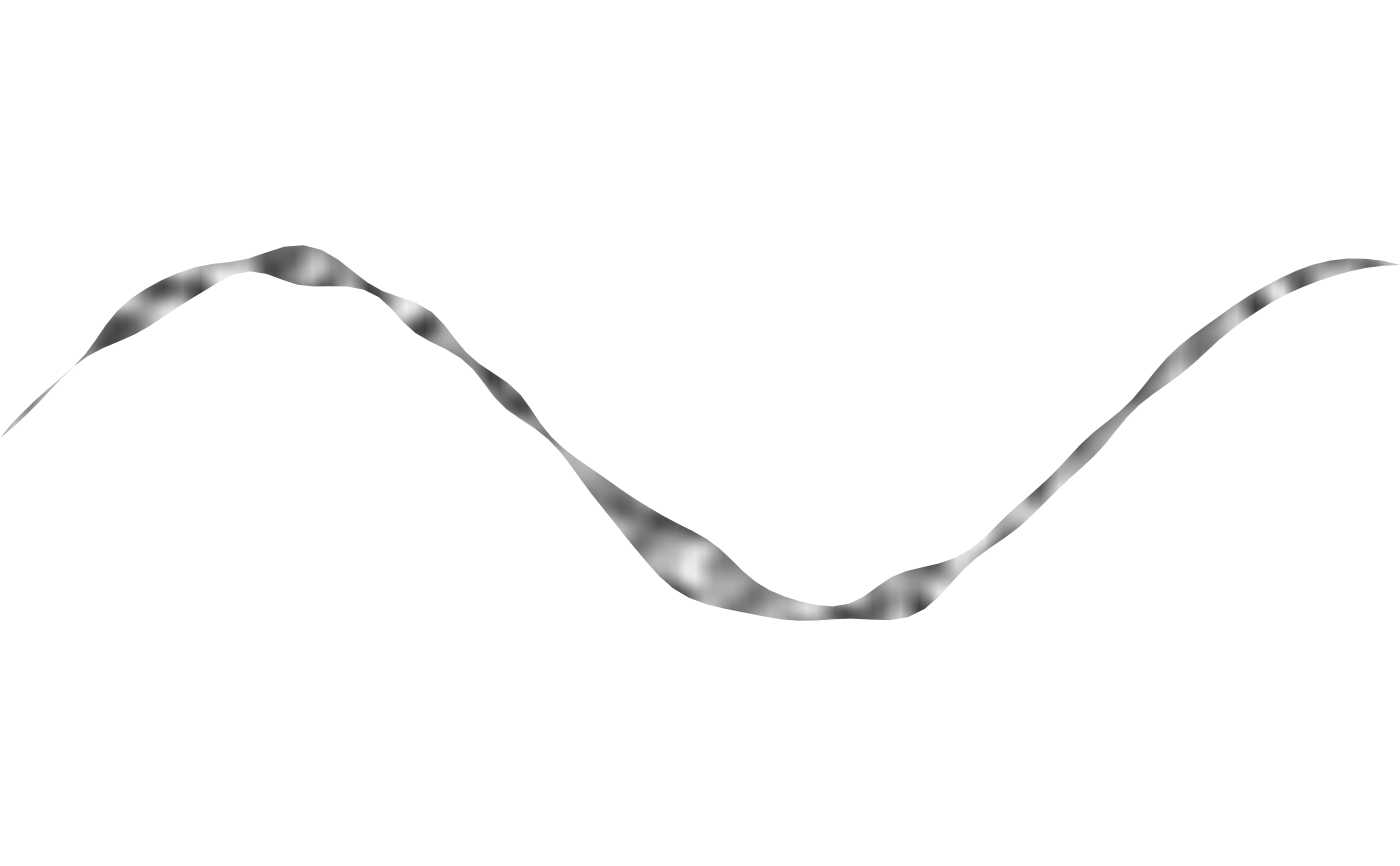

draw(effect_grain(
  template,
  color = "gray5",
  alpha = 0.85,
  background = "gray30"
))


# a coarser grain field (lower frequency) reads less like paper texture
# and more like a mottled brushstroke

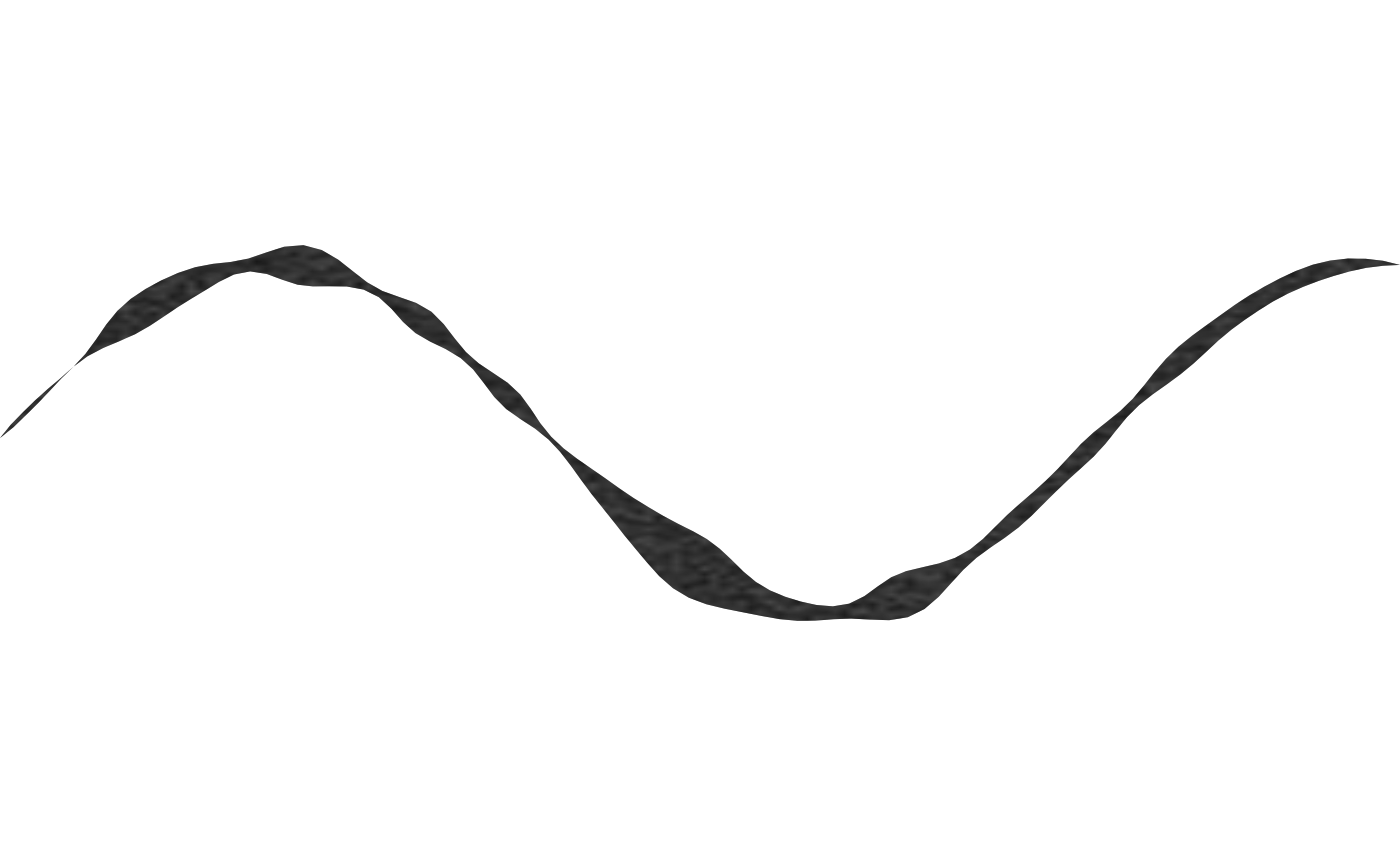

draw(effect_grain(template, grain = noise_field(frequency = 3, seed = 2)))
