Gradient fill

Source: R/fill.R
fill_gradient.Rd

fill_gradient() builds a grid::pattern() fill value whose tile content is a single rectangle filled with a grid::linearGradient() or grid::radialGradient(), depending on type.

Usage

fill_gradient(
  color = c("white", "black"),
  type = c("linear", "radial"),
  angle = 45,
  stops = NULL,
  spacing = 1,
  aspect = NULL,
  extend = "pad"
)

Arguments

color

Two or more colours to interpolate between.

type

Either "linear" or "radial". Default "linear".

angle

Gradient direction in degrees, for type = "linear" only (ignored for "radial"). Default 45.

stops

Colour stop positions, as a numeric vector the same length as color, or NULL to space them evenly (the default used by grid::linearGradient()/grid::radialGradient()). Default NULL.

spacing

Tile size, as a fraction of the target's bounding box. Must be a positive number. Default 1 (one tile spans the whole shape).

aspect

Width-to-height ratio of the target polygon's bounding box. Must be a positive number, or NULL (the default) to resolve it automatically at draw() time – see fill_hatch()'s own aspect docs.

extend

Passed to the inner grid::linearGradient()/ grid::radialGradient(), controlling what happens beyond the colour stops. Default "pad".

Value

A pattern object as returned by grid::pattern(), suitable for use as the fill argument to grid::gpar().

Details

Like the other fill_*() helpers, this needs the target's bounding-box aspect ratio (aspect, resolved automatically by default – see fill_hatch()'s own aspect docs) to render true rather than stretched – but the correction is applied differently here. Rather than adjusting the gradient's own coordinates (the way fill_hatch() adjusts a segment's direction), fill_gradient() corrects the tile itself to be physically square, exactly as fill_stipple() does for its dots: once the tile is square, a gradient specified inside it in plain "npc" needs no further correction to render at the requested angle, or as a true circle for type = "radial".

This also means a gradient tile has none of fill_hatch()'s periodicity concerns: adjacent tiles are simply identical copies of the same square gradient, with nothing analogous to a hatch line's tile-edge dashing to avoid.

With the default spacing = 1, one tile spans (and, for a non-square bounding box, slightly overshoots) the target's entire bounding box, giving a single smooth gradient across the whole shape – the overshoot is invisibly clipped away by the target's own outline. Set spacing < 1 for a repeating pattern of small gradient motifs instead.

See also

Other fill helpers: fill(), fill_charcoal(), fill_checker(), fill_crosshatch(), fill_flow(), fill_halftone(), fill_hatch(), fill_image(), fill_marble(), fill_noise(), fill_none(), fill_scatter(), fill_scribble(), fill_solid(), fill_stipple(), fill_stripe(), fill_vignette()

Examples

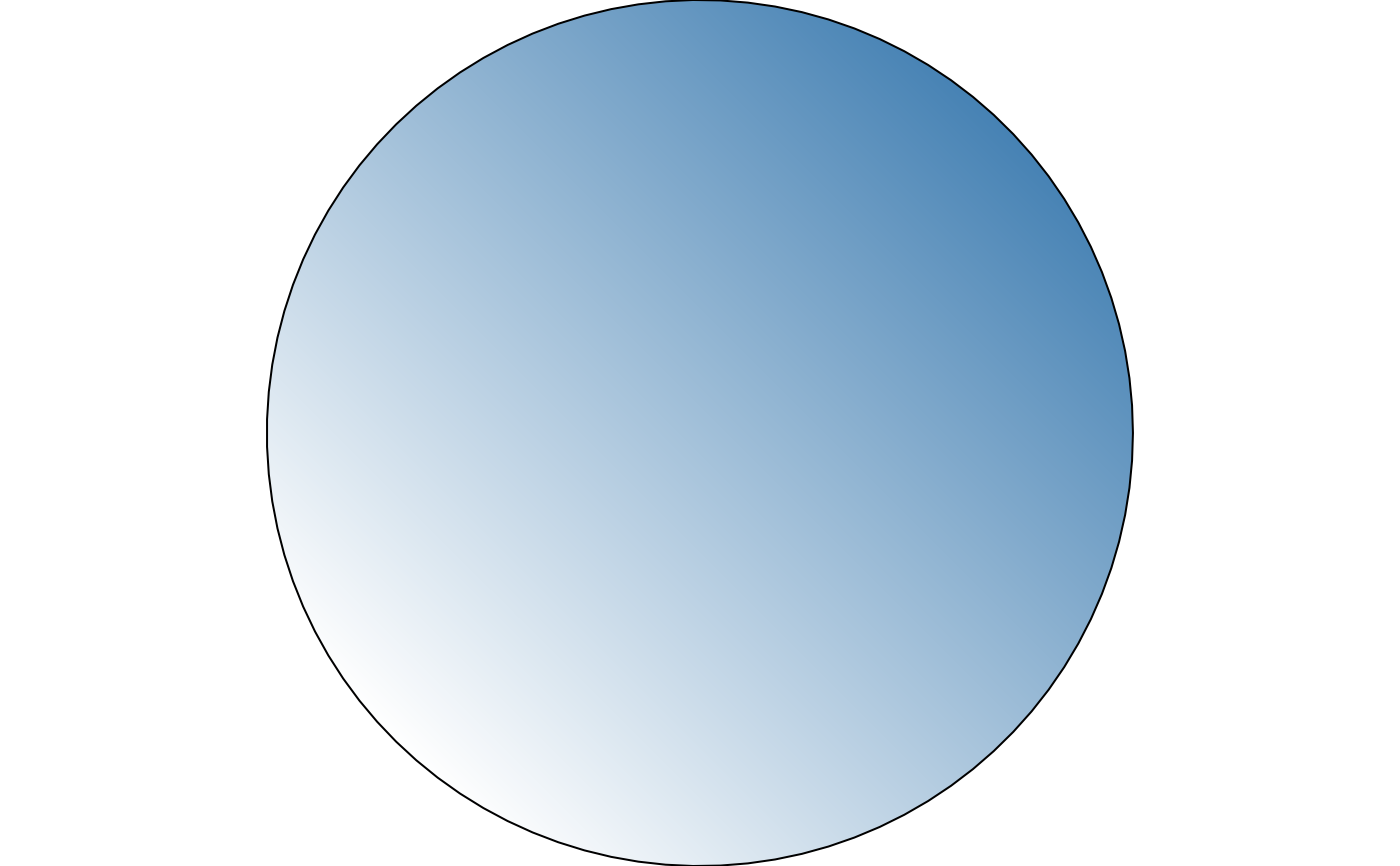

draw(shape_circle(fill = fill_gradient(c("white", "steelblue"))))

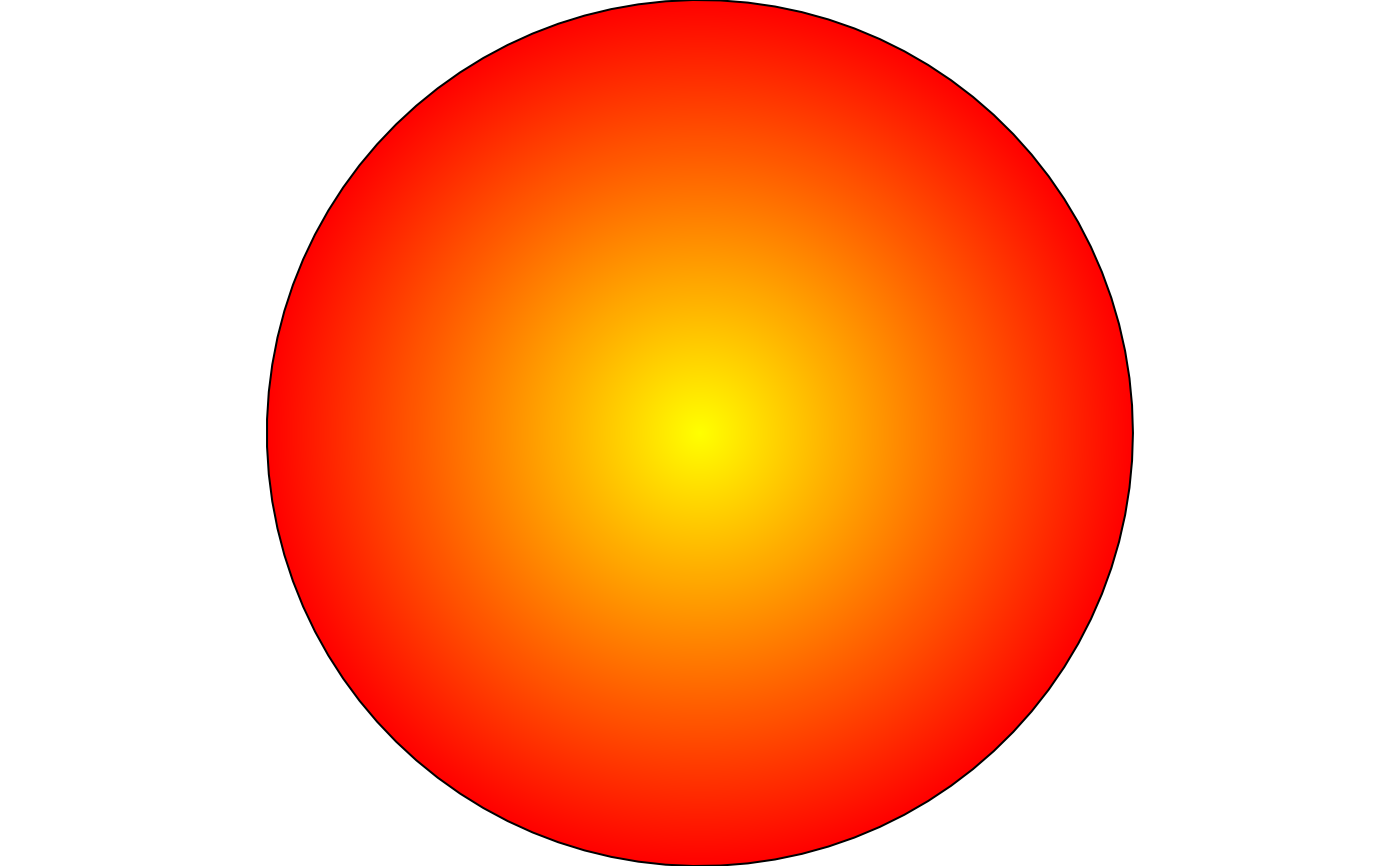

draw(shape_circle(fill = fill_gradient(c("yellow", "red"), type = "radial")))

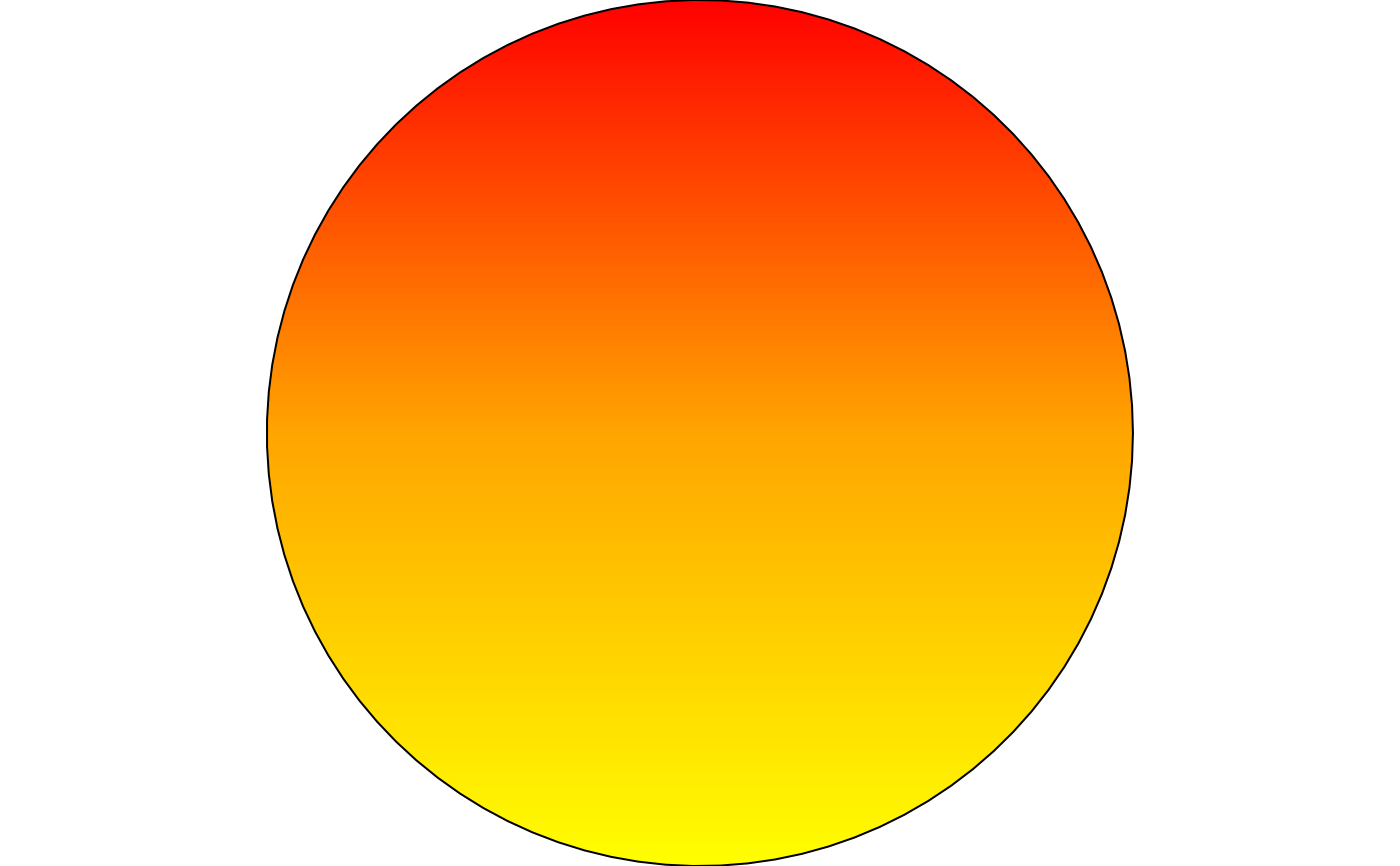

# three or more colours interpolate in sequence; angle rotates a linear
# gradient's direction
draw(shape_circle(
  fill = fill_gradient(c("yellow", "orange", "red"), angle = 90)
))

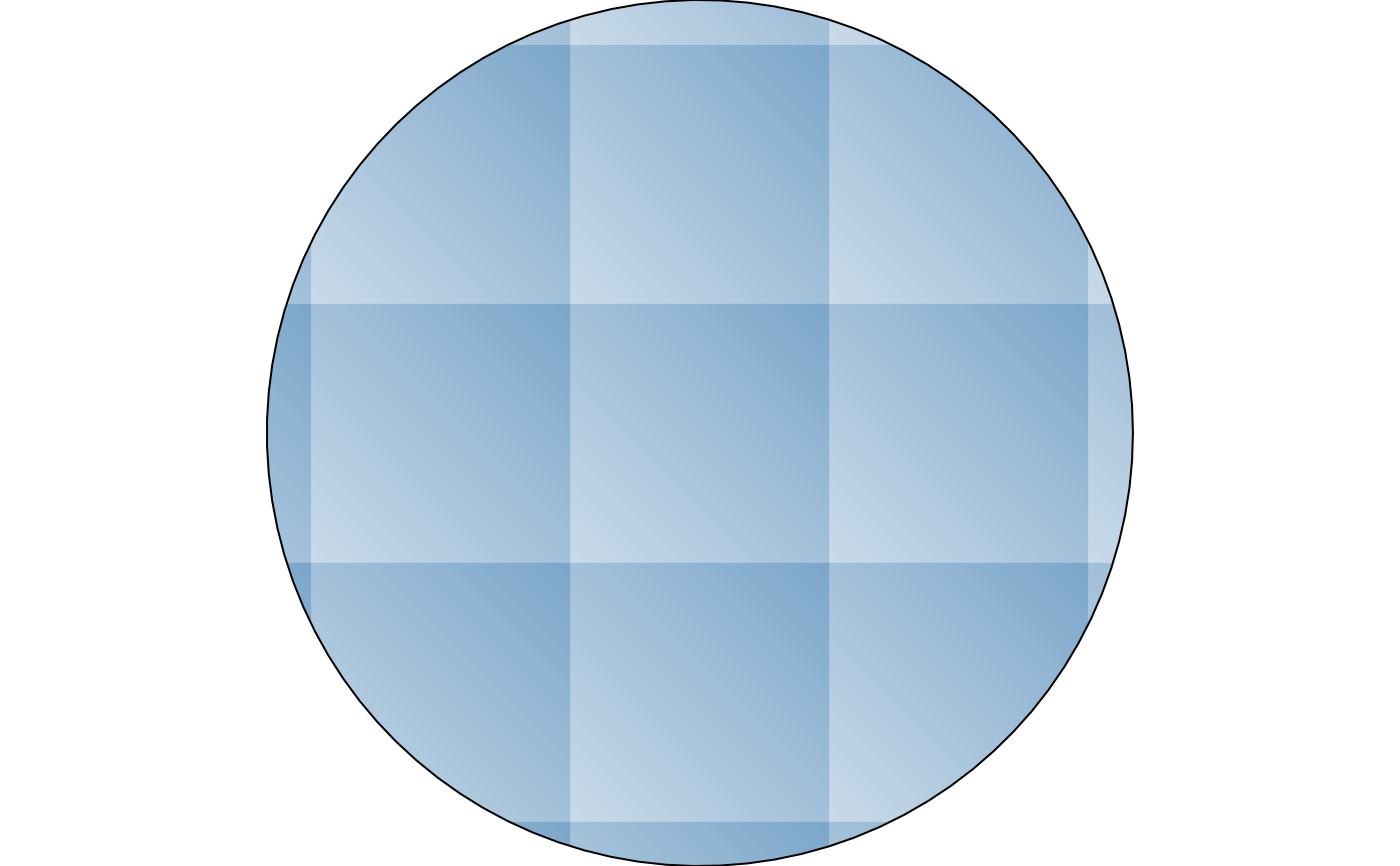

# spacing < 1 repeats the gradient as a small tiled motif instead of one
# smooth sweep across the whole shape
draw(shape_circle(
  fill = fill_gradient(c("white", "steelblue"), spacing = 0.3)
))
