User-supplied raster image fill

fill_image() builds a grid::pattern() fill value whose tile content is an arbitrary bitmap, rather than a texture generated by this package. It plugs any raster the caller already has in memory into the same grid::pattern() machinery fill_noise() uses for its own generated raster – but with the raster supplied, not computed.

Usage

fill_image(
  image,
  preserve_aspect = TRUE,
  spacing = 1,
  aspect = NULL,
  interpolate = TRUE,
  extend = "repeat"
)

Arguments


A raster image: a "raster" object, or a matrix/array accepted by grDevices::as.raster(). Not a file path – read the file first with e.g. png::readPNG(), jpeg::readJPEG(), or magick::image_read().

preserve_aspect

Whether to letterbox the image to preserve its own pixel aspect ratio (TRUE), or stretch it to exactly fill each tile (FALSE). Default TRUE.

spacing

Tile size, as a fraction of the target's bounding box. Must be a positive number. Default 1 (one tile spans the whole shape).

aspect

Width-to-height ratio of the target polygon's bounding box. Must be a positive number, or NULL (the default) to resolve it automatically from the real target's own bounding-box aspect ratio at draw() time – see the fill class. Passing a fixed number instead computes the pattern once, immediately, against that value only.

interpolate

Passed to grid::rasterGrob(). Default TRUE.

extend

Passed to grid::pattern(). Default "repeat".

Value

A pattern object as returned by grid::pattern(), suitable for use as the fill argument to grid::gpar().

Details

fill_image() doesn't read image files itself, to avoid adding an image I/O dependency (png/jpeg/magick, ...) to a package that otherwise has none. Load the file first with whichever of those packages is already on hand, then pass the result (or grDevices::as.raster() of it) as image – e.g. fill_image(png::readPNG("logo.png")) or fill_image(magick::image_read("logo.png")). Anything grDevices::as.raster() accepts works: a "raster" object, a character matrix of colour strings, or a numeric array of 0-1 RGB/RGBA intensities.

Unlike the other fill_*() helpers, fill_image()'s content has its own pixel aspect ratio to account for, on top of the usual target-bounding-box correction every helper needs (aspect, defaulting to automatic resolution exactly as every other helper – see fill_hatch()'s own aspect docs – and corrected for exactly as fill_noise() does – keeping the tile physically square). With preserve_aspect = TRUE (the default), the image is letterboxed to fit that square tile without distorting it: whichever of width/height is smaller in the image's own pixel dimensions is shrunk to fit, leaving the tile's remaining margin transparent. Set preserve_aspect = FALSE to stretch the image to fill the tile exactly instead, matching fill_noise()'s own (always-stretched) behaviour.

See also

Other fill helpers: fill(), fill_charcoal(), fill_checker(), fill_crosshatch(), fill_flow(), fill_gradient(), fill_halftone(), fill_hatch(), fill_marble(), fill_noise(), fill_none(), fill_scatter(), fill_scribble(), fill_solid(), fill_stipple(), fill_stripe(), fill_vignette()

Examples

img <- matrix(c("red", "white", "white", "blue"), nrow = 2)

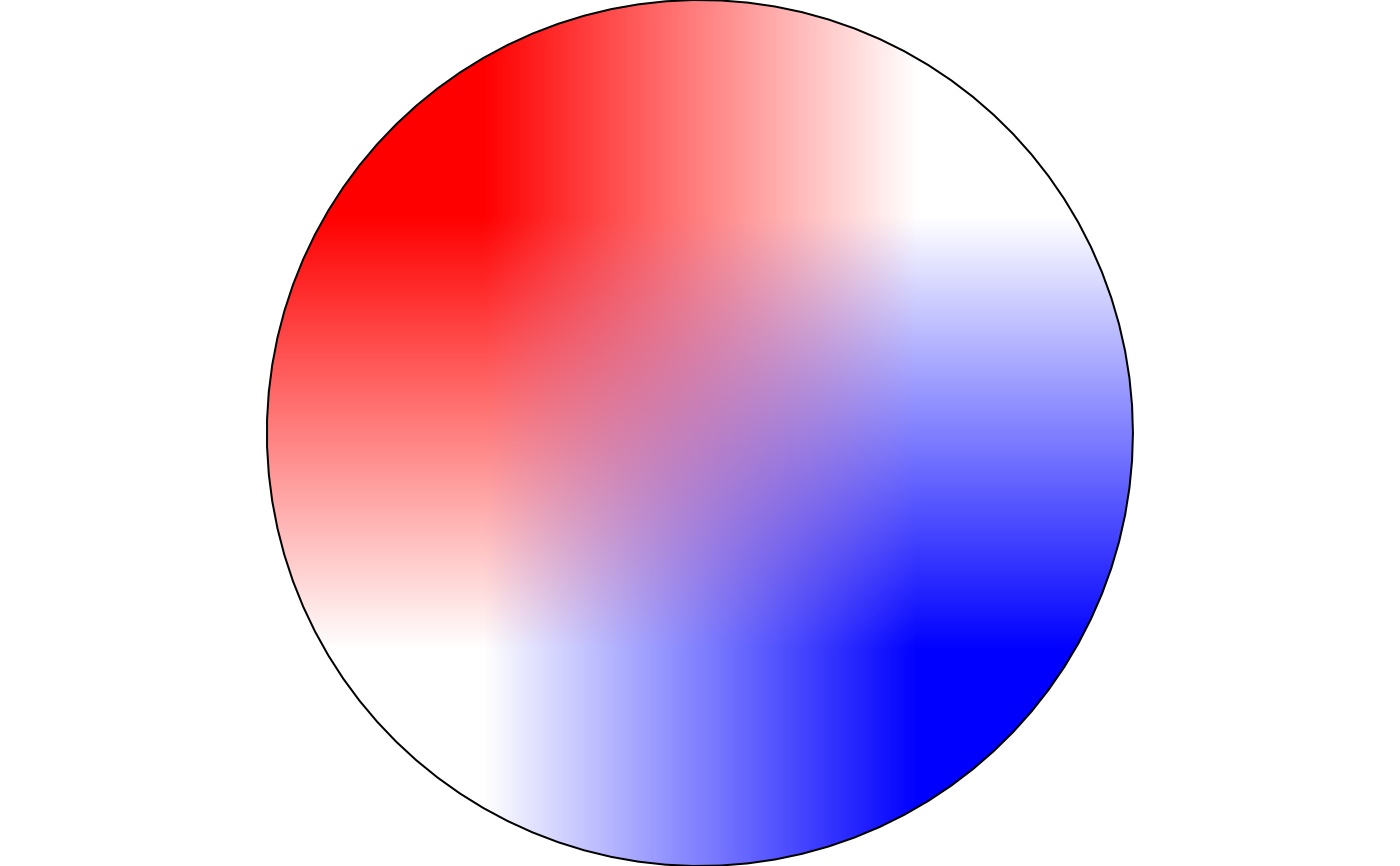

draw(shape_circle(fill = fill_image(img, preserve_aspect = FALSE)))


# a non-square image, letterboxed (default) vs. stretched to fill the tile
wide_img <- matrix(c("red", "white", "blue"), nrow = 1)

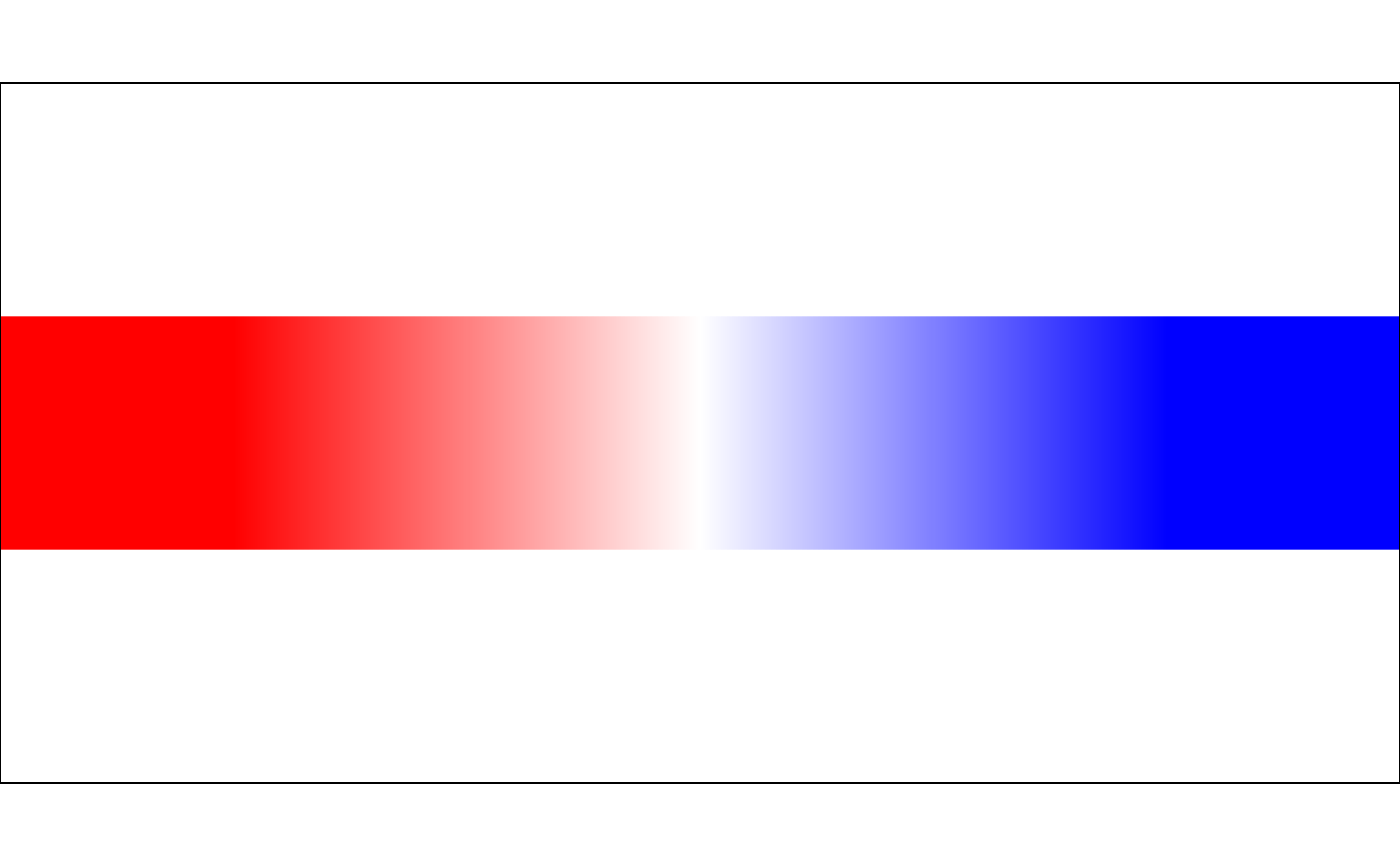

draw(shape_rectangle(width = 2, height = 1, fill = fill_image(wide_img)))

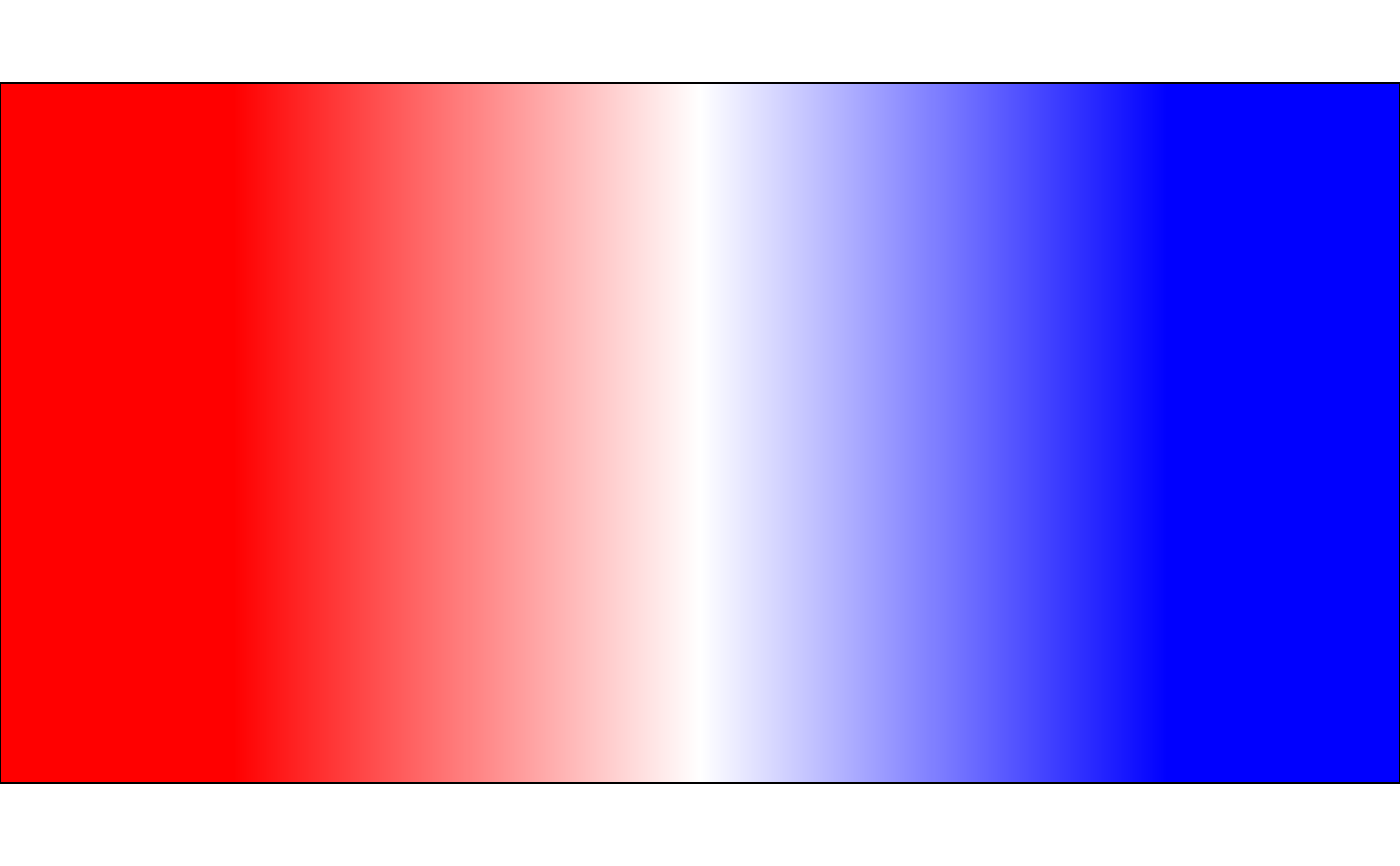

draw(shape_rectangle(
  width = 2,
  height = 1,
  fill = fill_image(wide_img, preserve_aspect = FALSE)
))
