Scattered-shape pattern fill

fill_scatter() generalizes fill_stipple(): instead of a fixed dot, it scatters copies of an arbitrary small drawable – rendered with its own style (colour, fill, linewidth), which may itself be another fill_*() pattern – at random positions inside each tile, using withr::with_seed() for reproducibility exactly as fill_stipple() does.

Usage

fill_scatter(
  unit = shape_circle(radius = 1),
  n = 6L,
  size = 0.2,
  color = NULL,
  spacing = 1,
  aspect = NULL,
  seed = 1L,
  extend = "repeat"
)

Arguments

unit

A small drawable to scatter copies of. Default shape_circle(radius = 1).

n

Number of copies scattered per tile. Must be a positive integer. Default 6L.

size

unit's rescaled size, as a "npc" fraction of the tile. Must be a number strictly between 0 and 1. Default 0.2.

color

NULL, or one or more colours overriding unit@style@color for each stamp, recycled (in order, not randomly) across the n copies. NULL (the default) colours every stamp from unit's own style, as before this argument existed.

spacing

Tile size, as a fraction of the target's bounding box. Must be a positive number. Default 1 (one tile spans the whole shape, since spacing < 1 risks the tiling distortion described above).

aspect

Width-to-height ratio of the target polygon's bounding box. Must be a positive number, or NULL (the default) to resolve it automatically at draw() time – see fill_hatch()'s own aspect docs.

seed

Integer seed for the scatter positions. Default 1L.

extend

Passed to grid::pattern(). Default "repeat".

Value

A pattern object as returned by grid::pattern(), suitable for use as the fill argument to grid::gpar().

Details

unit's own points are rescaled (preserving its own aspect ratio) to a bounding box of size size and re-centred at each scattered position; its absolute coordinates, position, and radius/width/etc. don't matter, only its shape.

This needed two corrections neither fill_stipple()'s circles nor fill_gradient()'s/fill_checker()'s rectangles did:

• Every other fill_*() helper's tile-squaring correction (height = spacing * aspect, keeping the tile physically square) was, by itself, enough to keep circular/rectangular content correctly proportioned. Arbitrary polygon content does not get the same treatment: empirically, a grid::polygonGrob() (or grid::pathGrob()) used as pattern content renders as though it inherits the target's own, uncorrected bounding-box distortion directly, regardless of the tile-squaring correction applied around it – confirmed by testing a hand-built circular polygon side by side with an equivalent grid::circleGrob() in the same corrected tile: the circle stayed circular, the polygon became an ellipse. So fill_scatter() applies a second, explicit correction directly to unit's own vertex x-coordinates (dividing by aspect) on top of the usual tile-squaring.

• Repeated (tiled) polygon content can render with visible clipping artifacts on Cairo devices – confirmed interactively: a single stamp, comfortably inside its tile's margins, rendered as a clean shape when the tile spans the whole target (spacing = 1, so extend = "repeat" is present but never actually exercised within the visible, clipped area) but as a "bitten" partial shape once spacing < 1 made the device actually tile multiple copies. This matches grid::pattern()'s own documented warning that "on Cairo devices, use of clipping in the pattern definition should be avoided because it is very likely to result in distortion of the pattern tile." Circles/rectangles/rasters didn't show this in the rest of the family, but arbitrary polygon geometry did. spacing therefore defaults to 1 here (one tile spans the whole shape, scattering all n copies across it at once) rather than the smaller, densely-tiled defaults used elsewhere; setting spacing < 1 is still possible for a repeating scattered motif, but may show this distortion. (Later testing on fill_stipple() found the same actually-repeated tile with multiple shapes combination distorts circleGrob content too, not just polygons – see its "Known rendering risk" section. A single tile with multiple shapes, as used by this function's default, was never observed to have the problem; only real repetition, spacing < 1, was.)

See also

Other fill helpers: fill(), fill_charcoal(), fill_checker(), fill_crosshatch(), fill_flow(), fill_gradient(), fill_halftone(), fill_hatch(), fill_image(), fill_marble(), fill_noise(), fill_none(), fill_scribble(), fill_solid(), fill_stipple(), fill_stripe(), fill_vignette()

Examples

draw(shape_circle(
  fill = fill_scatter(unit = shape_circle(radius = 1), n = 8L, size = 0.15)
))

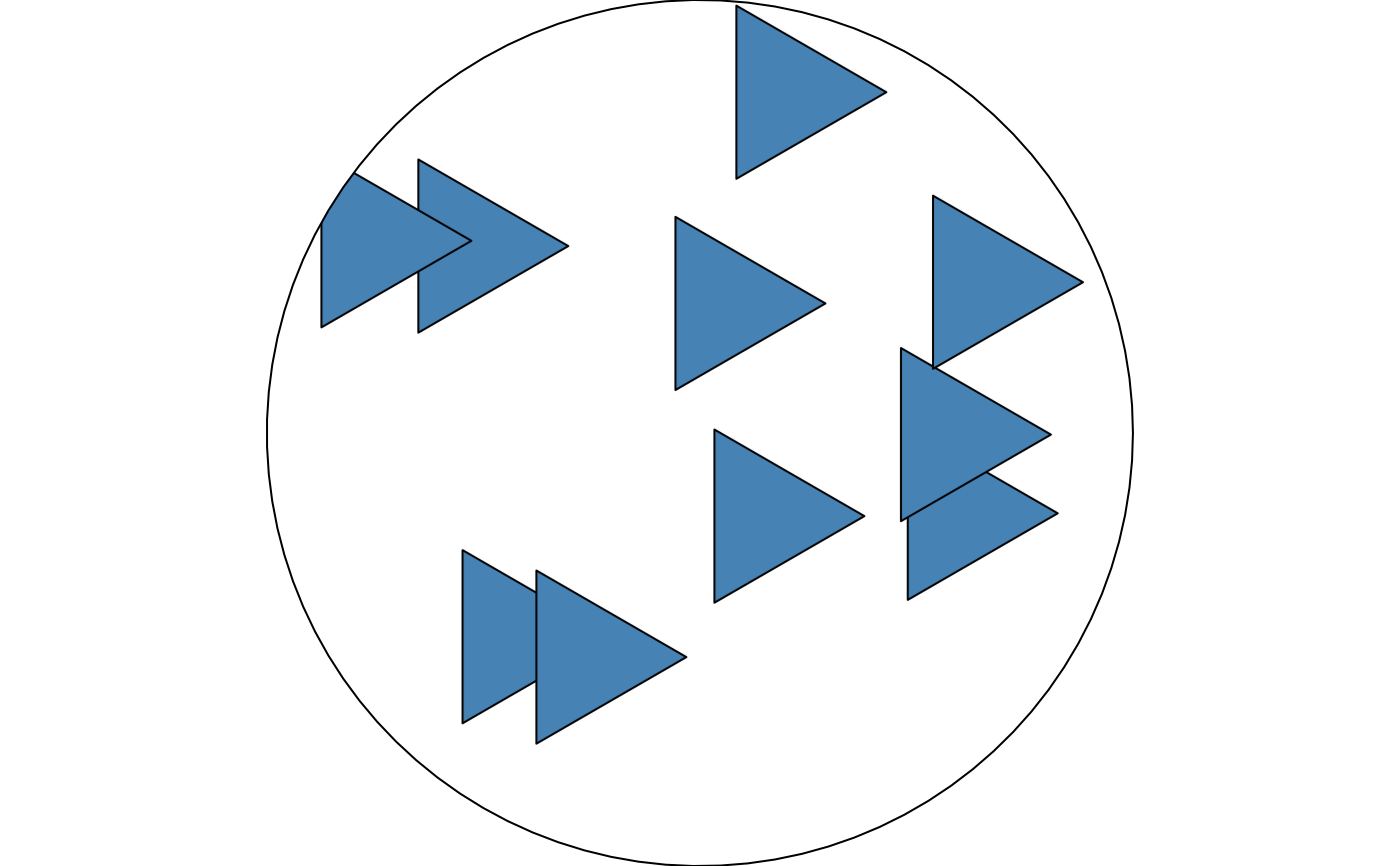

# any small drawable works as the scattered unit, e.g. a triangle
draw(shape_circle(
  fill = fill_scatter(
    unit = shape_polygon(n = 3, fill = "steelblue"),
    n = 10L,
    size = 0.2
  )
))

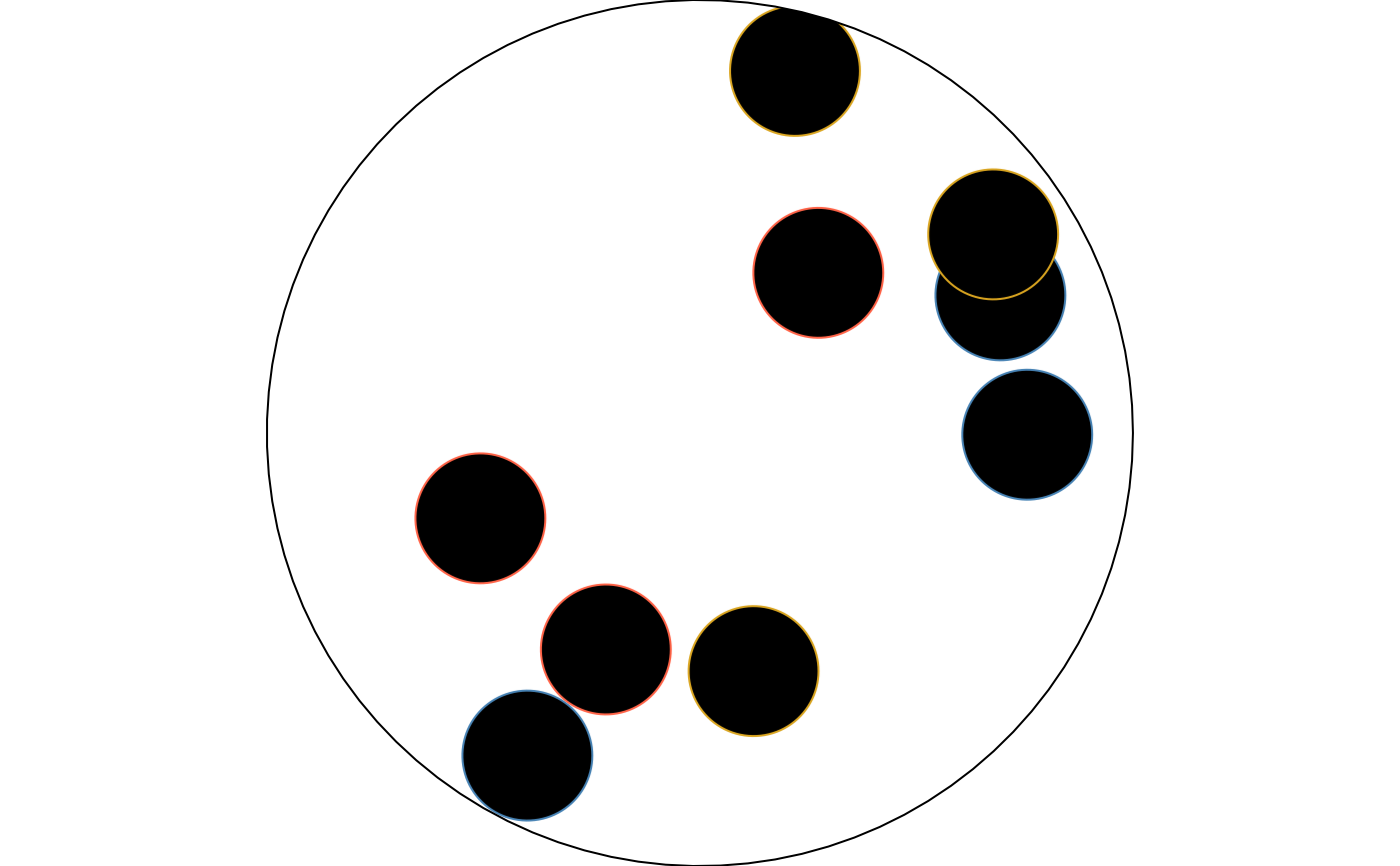

# a color vector overrides unit's own style colour, recycled per stamp
draw(shape_circle(
  fill = fill_scatter(
    color = c("steelblue", "tomato", "goldenrod"),
    n = 9L,
    size = 0.15
  )
))
