A ribbon following an arbitrary curve

shape_strokepath() builds a tapered, noise-modulated ribbon (like shape_stroke()) whose backbone follows an arbitrary curve_*() drawable's own computed points, rather than raw x/y control points.

shape_strokepaths() is a vectorized version of shape_strokepath(): each argument may be a vector, recycled against the others via purrr::pmap()'s own vctrs-based rules. The result is a sketch containing one shape_strokepath() per recycled row, rather than a single drawable.

Usage

shape_strokepath(
  path,
  width = 0.2,
  n = 100L,
  distortion = noise_field(),
  trans = trans_identity(),
  ...
)

shape_strokepaths(
  path,
  width = 0.2,
  n = 100L,
  distortion = noise_field(),
  trans = trans_identity(),
  ...
)

Arguments

path

A drawable with geometry == "path" (i.e. any curve_*() constructor's output, e.g. curve_bezier(), curve_line(), curve_twist(), curve_spiral(), curve_arc(), curve_scribble(), curve_raw()) – its own computed points become this ribbon's backbone.

width

Maximum width. Must be non-negative. Default 0.2.

n

Number of points used along the ribbon, resampled evenly by arc length from path's own points (independent of however many points path itself was sampled at). Must be at least 2. Default 100L.

distortion

A noise_field controlling the width ("pressure") modulation. Default noise_field().

trans

A trans object applied to the ribbon's computed points, on top of any trans already applied to path itself. Default trans_identity() (no transform).

...

Arguments passed to style().

Value

A drawable (a shape_stroke).

For shape_strokepaths(), a sketch.

Details

It is a thin wrapper: path@points is extracted and fed straight into shape_stroke(), so the object it returns is literally a shape_stroke – shape_strokepath() exists only to save the caller from writing shape_stroke(x = path@points@x, y = path@points@y, ...) by hand, and to make the "ribbon around a curve" use case discoverable under its own name.

Because the result is a shape_stroke, its width offset uses a true per-point unit normal (shape_stroke()'s own stroke_normals() helper) rather than a single shared offset direction – this is what lets shape_strokepath() work correctly for any backbone shape, including ones that loop or bend sharply (e.g. curve_twist(), curve_spiral()), not just a nearly-straight one. Passing a curve_bezier() here covers the same use case the package's earlier shape_bezier_ribbon() (since removed) provided, but the two are not numerically identical for a curved backbone: shape_bezier_ribbon() offset by one shared direction vector (the straight line from its start to end point) for the whole ribbon, and its taper formula peaked at 0.5; shape_strokepath() instead inherits shape_stroke()'s true per-point normals and its taper formula (which peaks at 1, so width is exactly the maximum rendered width).

Any length-1 element is broadcast to the common length; mismatched lengths greater than 1 raise an error. Unlike the x/y-list-column constructors (e.g. shape_beziers()), path is a single drawable object per ribbon, not a numeric vector, so a single shared path recycles automatically across every ribbon (the same way a shared distortion noise_field already does); pass a list() of several different curve_*() objects instead to vary the backbone per ribbon.

See also

Other 2D shapes: shape_bezier(), shape_blob(), shape_circle(), shape_combine(), shape_ellipse(), shape_polygon(), shape_raw(), shape_rectangle(), shape_ribbon(), shape_star(), shape_stroke(), shape_twist(), shape_wedge()

Examples

draw(shape_strokepath(
  curve_bezier(x = c(0, 0.25, 0.75, 1), y = c(0, 1, -1, 0)),
  width = 0.2
))

draw(shape_strokepath(
  curve_twist(
    x = 0,
    y = 0,
    xend = 1,
    yend = 0,
    path_distortion = noise_bridge(seed = 7734)
  ),
  width = 0.15
))

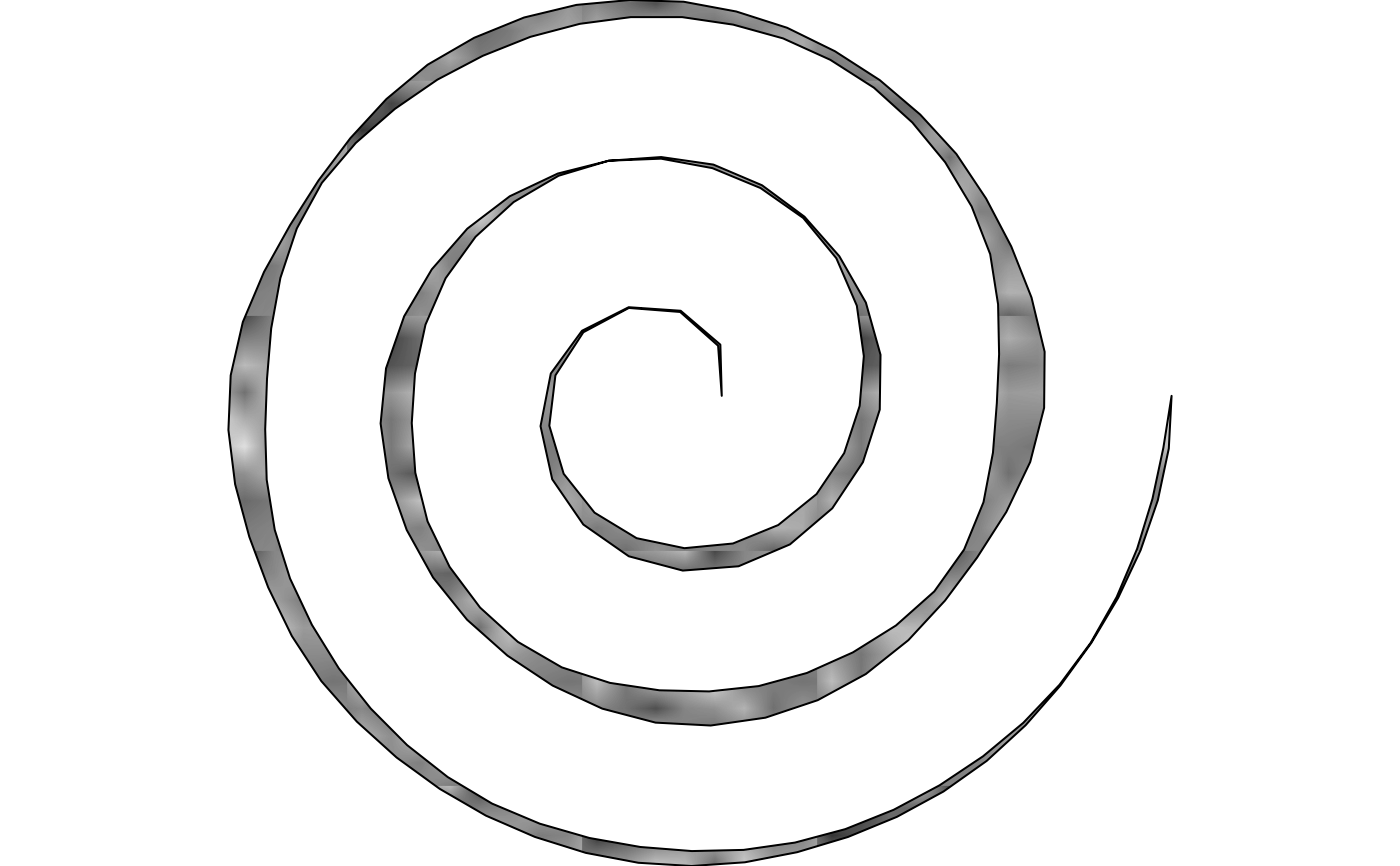

# a ribbon around a spiral -- a backbone shape_ribbon()/shape_twist()'s
# shared single offset direction couldn't render correctly
draw(shape_strokepath(
  curve_spiral(radius_start = 0.1, radius_end = 1, turns = 3),
  width = 0.1, fill = fill_charcoal()
))


draw(shape_strokepaths(
  path = list(
    curve_bezier(x = c(0, 0.25, 0.75, 1), y = c(0, 1, -1, 0)),
    curve_line(x = c(0, 1, 2), y = c(2, 3, 2))
  ),
  width = 0.2
))
